Main features:

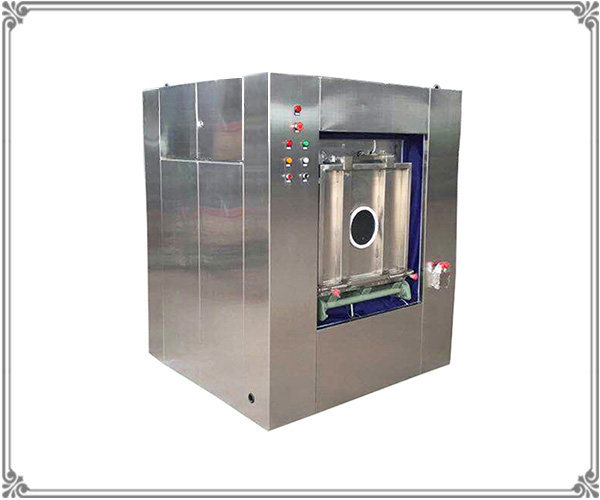

The concept of sanitary isolation washing machine divides the laundry room into two independent operating ranges in clean and unclean areas. The washing material is loaded by the door which is located on one side of the unclean area. After the washing is finished, the washing is removed from the door on one side of the clean area. It is an ideal solution for the dust - free industry and the hospital laundry to prevent the scrubbing from the cross - pollution caused by the unclean area loading and discharging.
The main technical parameters of the sanitary isolation washing machine:
Type | BW100 | BW50 |
Rated capacity(Max.) kg | 100 | 50 |
G-force(high extractor) | 380 | 320 |
Power supply VP/Hz | 380/3/50 | 380/3/50 |
Motor power Kw | 11 | 7.5 |
Connection | ||
Cold water DN | 40 | 25 |
Hot water DN | 40 | 25 |
Steam DN | 25 | 25 |
Overall Size | ||
Width mm | 2105 | 1976 |
Depth mm | 1580 | 1420 |
Height mm | 2120 | 1860 |
Machine weight Kg | 2800 | 1800 |
Note: due to the continuous upgrading of the equipment, all the parameters and drawings are for reference only. If there is any change, no notice will be given, and the guidance of the scene is welcome.
